Additional Information

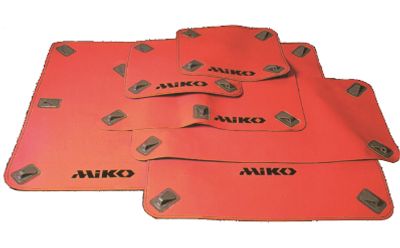

 The patented Magnetic Miko Plaster is a magnetic tarpaulin qualified by DNV GL for sealing off sea chests, water inlets and outlets under the water line while the ship is afloat. The seal is achieved by the water pressure coupled with the magnetic adhesion between the patch and the steel surface. The magnetic tarpaulins are designed for long term storage and are not demagnetized after use.

The outer layer is a polyester-reinforced PVC matting, strong enough to lift an average car with a 50 mm wide stripe. The inner layer is a nitrile rubber sheeting that provides the magnetic holding force as well as strong frictional force and sealing effect against the steel surface. The larger sizes of Miko Plaster are equipped with a buoyancy sheet to facilitate easy handling under water.

The magnetic tarpaulins are produced in Norway and standard sizes can delivered quickly to site in in urgent situations. Standard sizes are available in the Emergency Response Bag and the Tanker Kit together with supplementary tools for installation. Customized magnetic tarpaulins are supplied in any shape and size.

Standard sizes

0,45m x 0,5m / 0,45m x 0,83m / 0,9m x 1,25m / 2,25m x 2,5m / 4,5m x 5,0m

(17.7" x 19.68" / 17.7" x 32.67" / 35.4" x 49.2" / 88.58" x 98.4" / 177" x 196.85")

Magnetic holding force

100 g/cm2 (1.42 lb/in2)

Weight in air

9,0 kg/m2 (1.84 lb/ft2)

Weight in water

5,5 kg/m2 (1.13 lb/ft2)  (or slightly positive with buoyancy sheet)

Lifting lug holding capacity

350 kg each (771 lb)

Max. temperature

120 °C (248 F)

Thickness

3,5 mm (0.14")

Stretch strength

8 500 N/5cm (752 lb/in2)

Shear strength

1 500 N (DIN 53356) (337 lb/f)

Welding strength

1 500 N (DIN 53363)  (337 lb/f)
