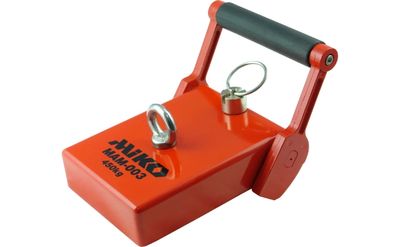

 MAM-003 has a holding force of 450 kg* (992 lb) and can be used for fastening large devices such as oil booms or any type of heavy diving equipment to ship sides and other steel structures.

The magnetic component consists of neodymium which is coated with epoxy to improve its corrosion resistance in sea water. The magnet is equipped with a mooring lug and breaking lever for easy release and safe operation. The bottom is fitted with a rubber filling for increased friction and improved usability.

All Miko magnets are shipped in a double-skin steel box to isolate the magnetic field and to prepare them for air freight.

MAM-003 is also available in a watertight plastic case with in-built magnetic shielding.

Holding Force
450 kg* (992 lb)

Footprint
155 x 115 mm (6.10" x 4.53")

Net Weight
4 kg (8.8 lb)

Gross Weight (Box)
7 kg (15.4 lb)

Quantity in Box
1 pcs

*Refers to the perpendicular holding force when applied directly onto a clean mild steel plate of minimum thickness 16 mm. (0.63")
